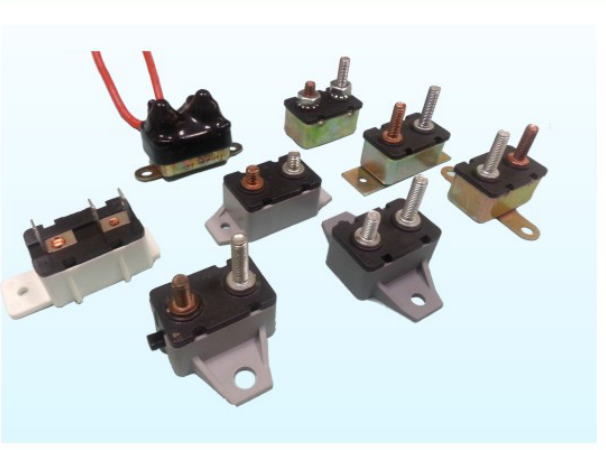

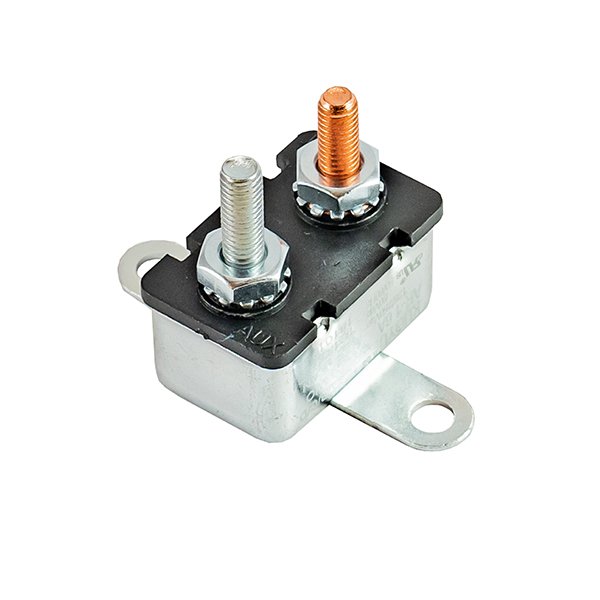

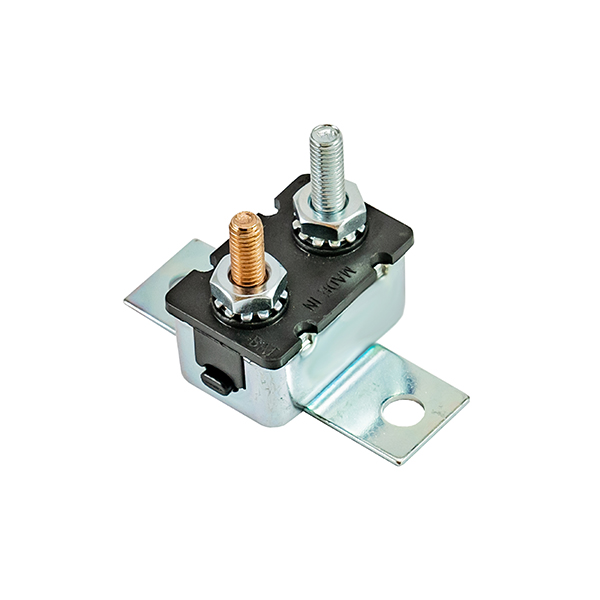

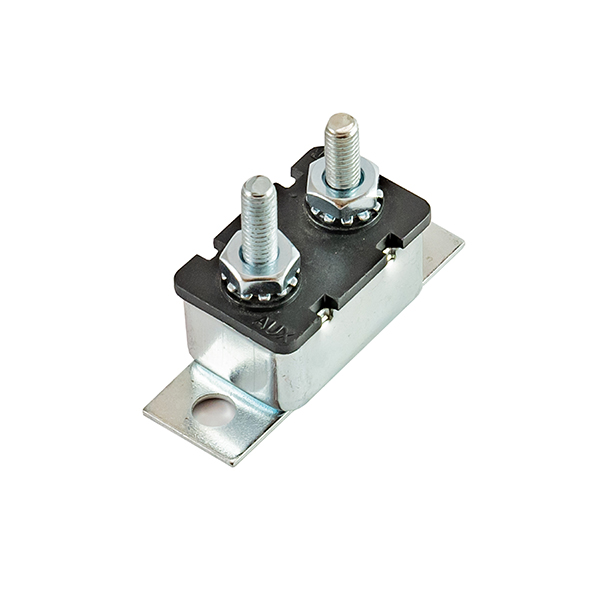

产品名称: AR系列
产品型号: 3A-60A
点击次数: 次
额定电流(rating):3A-60A 输入电压(Input Power):125VAC/250VAC/50VDC 50-60Hz 耐电压强度(Withstand voltage strength):1500VAC/1min 漏电电流≤0.5mA(1500VAC/min,the leaked current is less than≤0.5mA) 绝缘电阻(Insulation Resistance):500VDC1Min≥100MΩ 额定短路能力(Rated short-circuit capacity):125VAC/1000A，250VAC/1000A 额定通断能力(Rated breaking capacity):6倍额定电流(6 times rated current) 复位方式(reset):自动复位(Auto Reset) 复位时间(Reset Time):60s"内回复(Within 60s") 脱扣特性(Tripping characteristics) 测试环境温度(The test environment temperature):25℃±3℃ 额定电流200%(200% of Ratcd Currcnt):5-40s" 内脱扣(5-40s" Seconds Trip) 额定电流150%(150% of Rated Current):一个小时内脱扣(Trip within 1 Hour) 额定电流100%(100% of Rated Current):保持不脱扣(Hold,No Trip)
