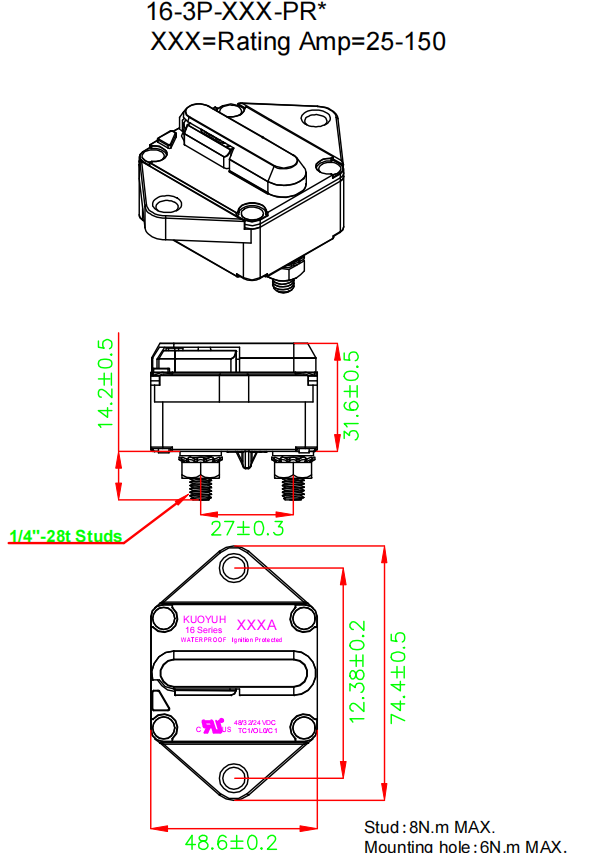

产品名称: 16-3P
产品型号: 30A-150A
点击次数: 次
额定电流(Current rating range):30A-150A 额定电压(Input voltage rating ):12/24/32/48VDC 复位方式(Reset): 手动复位(Manual Push Reset) 限制短路电流(Interrupting capacity): 2000A/32VDC Type I 2000A/14VDC Type II 1500A/48VDC Type III 介电强度(Dielectric Strength):>1500VAC/min 绝缘电阻(Insulation Resistance):>100MOHM(DC 500V) 防护等级(Degree of protection):IP66 复位时间(Reset-Time):<60sec 工作环境温度(Operating Temperature Rating):-30℃-80℃ 储存温度(Storage Temperatur Rating):-30℃-140℃ |
